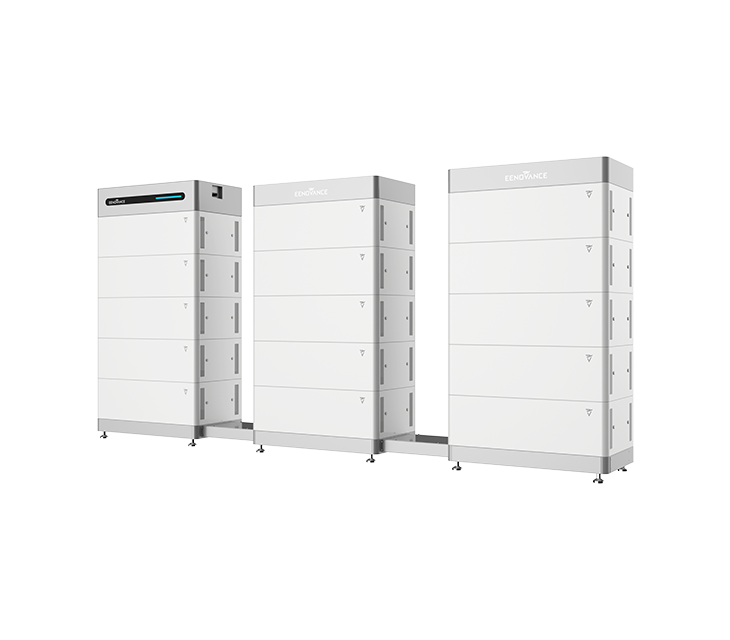

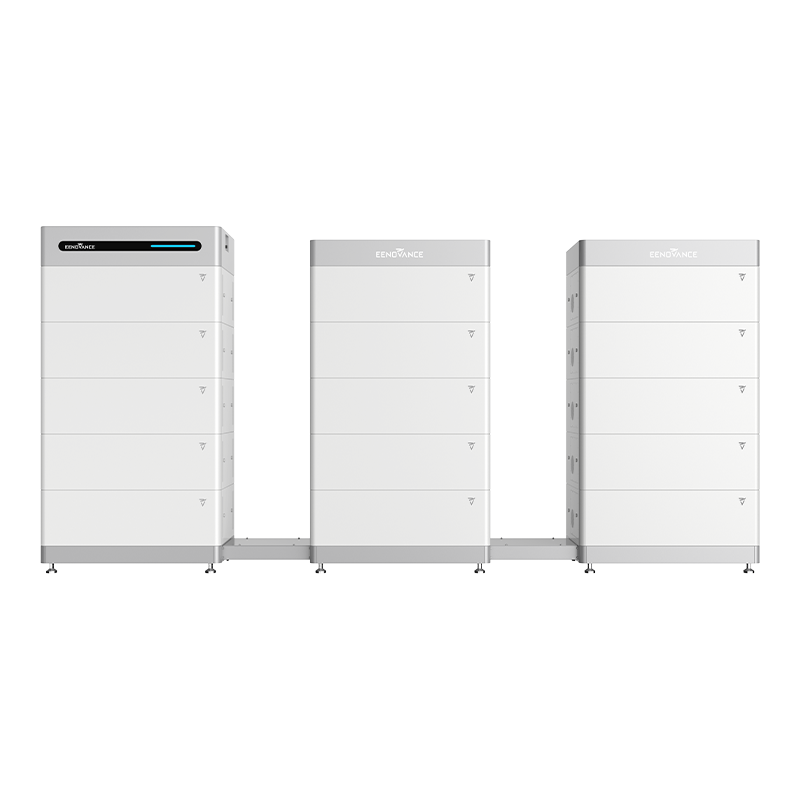

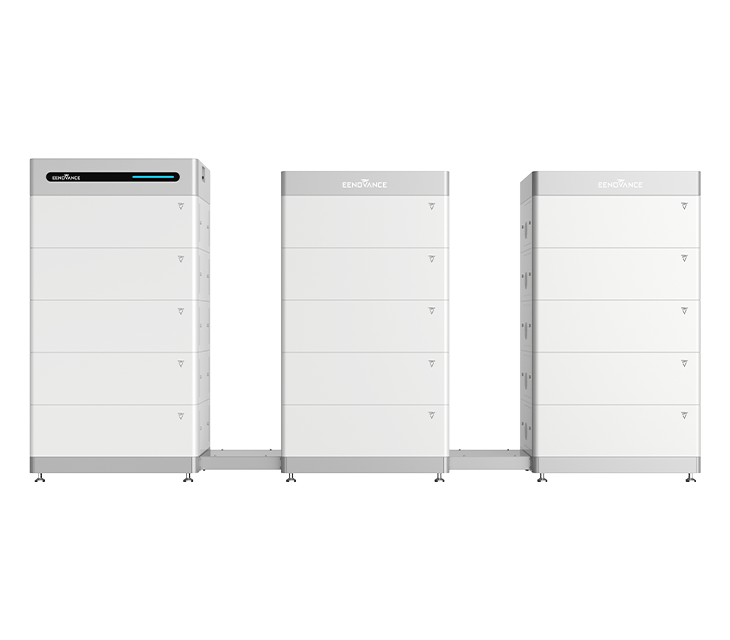

CHAKRA 16-HX
High-Voltage | 96.46 - 241.15 kWh
CHAKRA 16-HX is a high-voltage residential battery system designed to maximize solar self-consumption, provide reliable backup power, and support long-term energy independence. Built with advanced LFP technology,intelligent battery management system, and a modular architecture, the system delivers safe, efficient, and scalable energy storage for a wide range of residential applications.
Features
Engineered for Safety
Combining LFP chemistry, intelligent battery protection, and integrated fire suppression to safeguard every stored kilowatt-hour.
Effortless Deployment
A plug-and-play architecture with automatic module recognition simplifies installation and reduces commissioning time.
Scales with Your Needs
Expand from 96.46 kWh to 241.15 kWh with a flexible modular design built for evolving energy requirements.
.svg)
Smarter Energy Control
Real-time monitoring, intelligent scheduling, and remote access help maximize energy efficiency and system visibility.
Designed for Seamless Integration
Compatible with leading inverter brands and residential solar systems for greater installation flexibility.
Products Parameter
CHAKRA 16-HX
- Cell technology: LFP ( LiFePO4)
- Battery usable energy: 16.07 kWh
- Nominal voltage: 51.2 V
- Nominal capacity: 314 Ah
- Display: LCD Display (battery operating status, SOC, alerts, etc.)
- Ingress protection: IP20
- Cycle life: 8000 cycles or 10 years at 80 % DoD, 25 °C, 0.5 C, and 70 % EOL
- Expansion: Up to 12 clusters in parallel
- Certification and Safety Standard UN 38.3
- Operating temperature: Charge : 0 to 55°C, Discharge: -20 to 55°C
- Installation: Cable-free stacking
- Communication: CAN / RS485 / Wi-Fi
