CHAKRA 5.1-HX

High-Voltage | 20.48 - 61.44 kWh

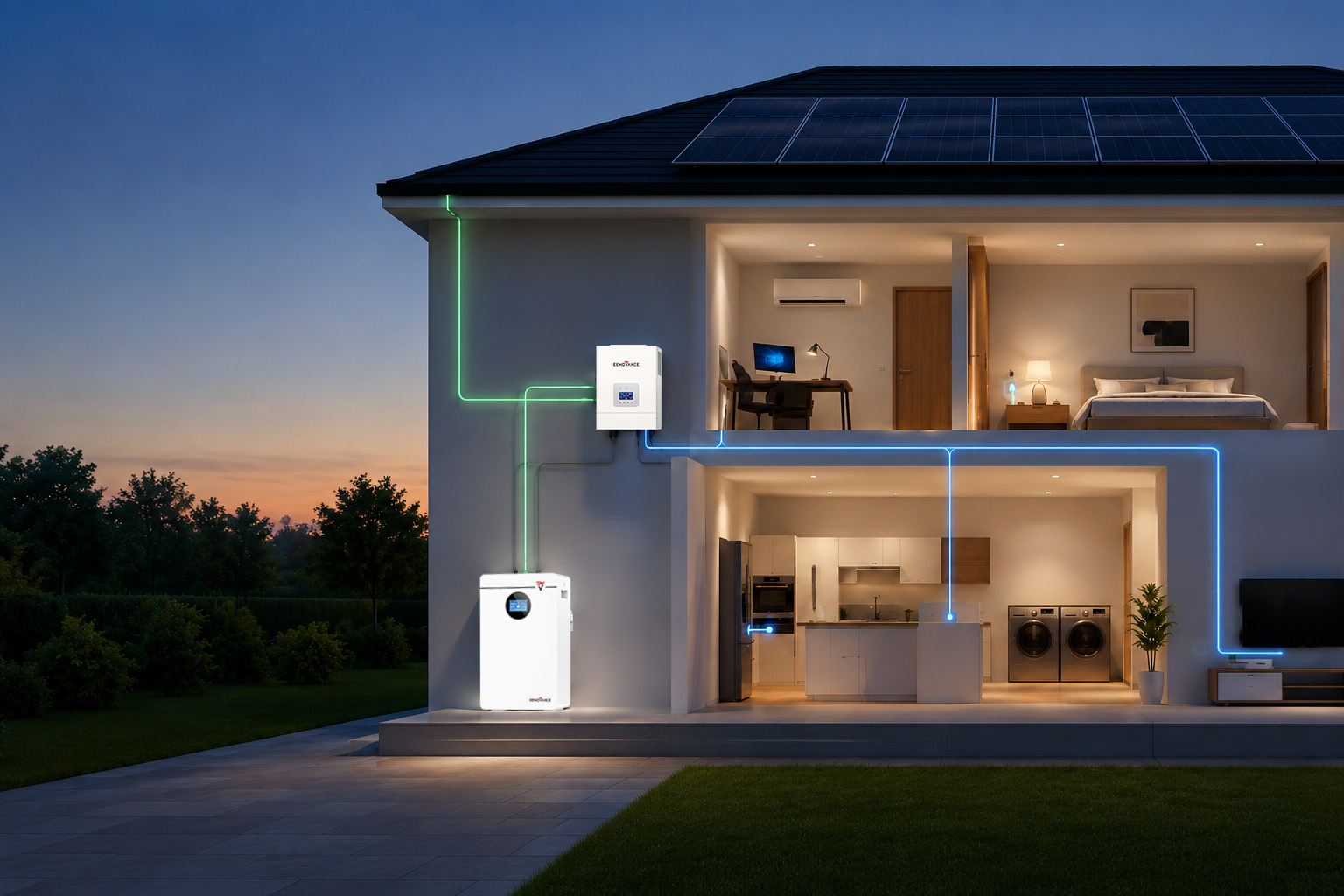

CHAKRA 5.1-HX is a high-voltage residential battery system designed to maximize solar self-consumption, provide reliable backup power, and support long-term energy independence. Built with advanced LFP technology,intelligent battery management system, and a modular architecture, the system delivers safe, efficient, and scalable energy storage for a wide range of residential applications.

Certification:
UN38.3

Features

Engineered for Safety

Combining LFP chemistry, intelligent battery protection, and integrated fire suppression to safeguard every stored kilowatt-hour.

Effortless Deployment

A plug-and-play architecture with automatic module recognition simplifies installation and reduces commissioning time.

Scales with Your Needs

Expand from 20.48 kWh to 245.76 kWh with a flexible modular design built for evolving energy requirements.

Smarter Energy Control

Real-time monitoring, intelligent scheduling, and remote access help maximize energy efficiency and system visibility.

Ready for Every Season

IP65-rated protection and wide-temperature operation enable reliable performance indoors and outdoors.

Designed for Seamless Integration

Compatible with leading inverter brands and residential solar systems for greater installation flexibility.

Products Parameter

CHAKRA 5.1-HX

Cell technology: LFP ( LiFePO4)
Battery module: 5.12 kWh, 51.2 V, 45 kg (99.21 lb)
Battery usable energy: 20.48 kWh~61.44 kWh
Nominal voltage: 204.8 V~614.4 V
Max. charge and discharge current: 50 A
Display: LCD Display (battery operating status, SOC, alerts, etc.)
Ingress protection: IP65
Cycle life: 6000 cycles or 10 years at 80 % DoD, 25 °C, 0.5 C, and 70 % EOL
Scalability: Max 12 modules per stack, 4 stacks in parallel
Compliance: UN38.3
Operating temperature: Charge : 0 to 50°C (32 to 122°F) Discharge: -20 to 50°C (-4 to 122°F)
Installation: Floor-standing
Communication: CAN / RS485 / RS232 / Wi-Fi
