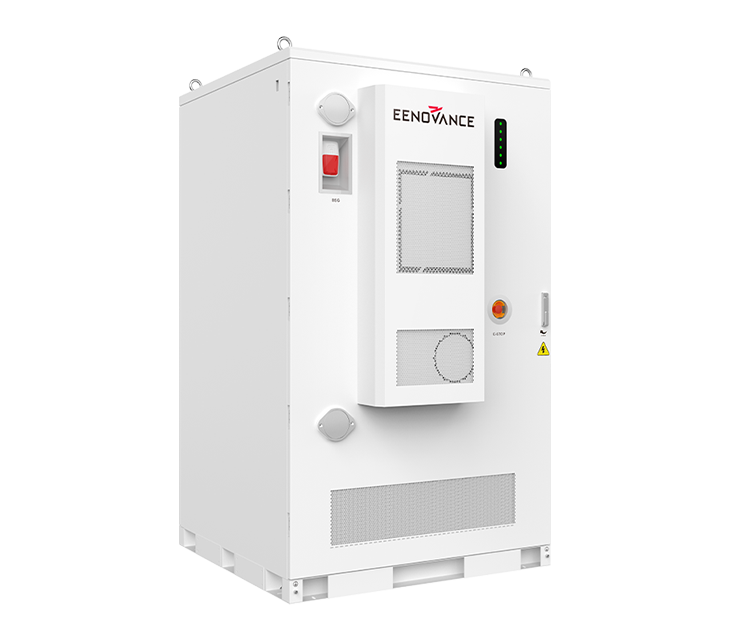

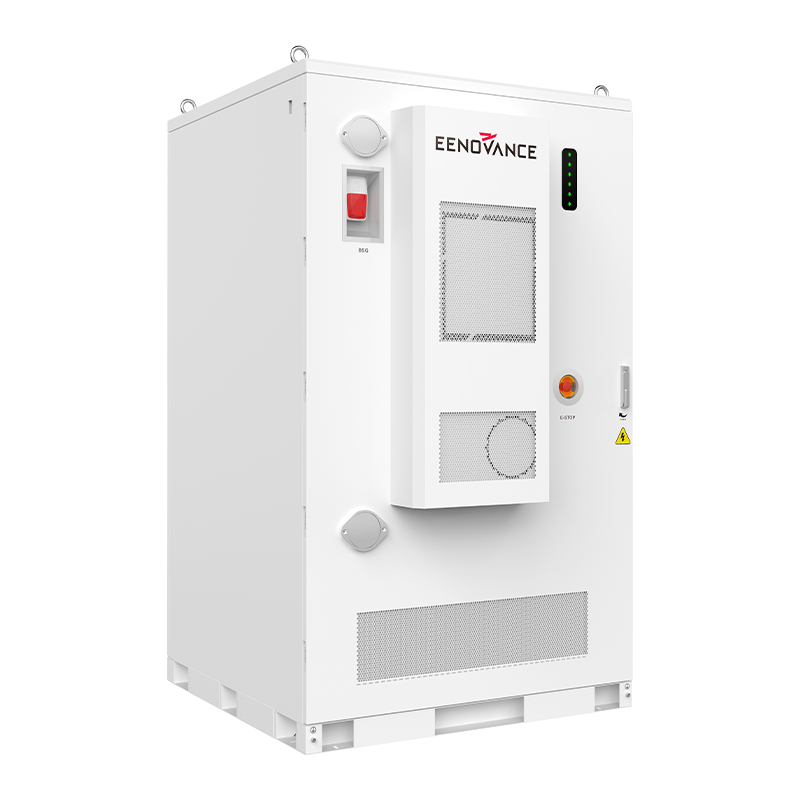

E-MATE 105-221-A

105kW/221kWh | Air Cooling ESS

The E-MATE 105-221-A is an C&I air-cooling energy storage system designed for efficiency and reliability. With intelligent operation features like remote monitoring and advanced thermal management, it ensures optimal performance while simplifying installation and maintenance for commercial storage needs.

Certification:

UN38.3/UN3480/EC62619/EC6100-6-2/IEC62477-1/CQC etc.

Features

Safe and Reliable

Multi-level early warning and fire suppression design.

High Integration

AC/DC integration simplifies installation and reduces costs.

Profit Maximization

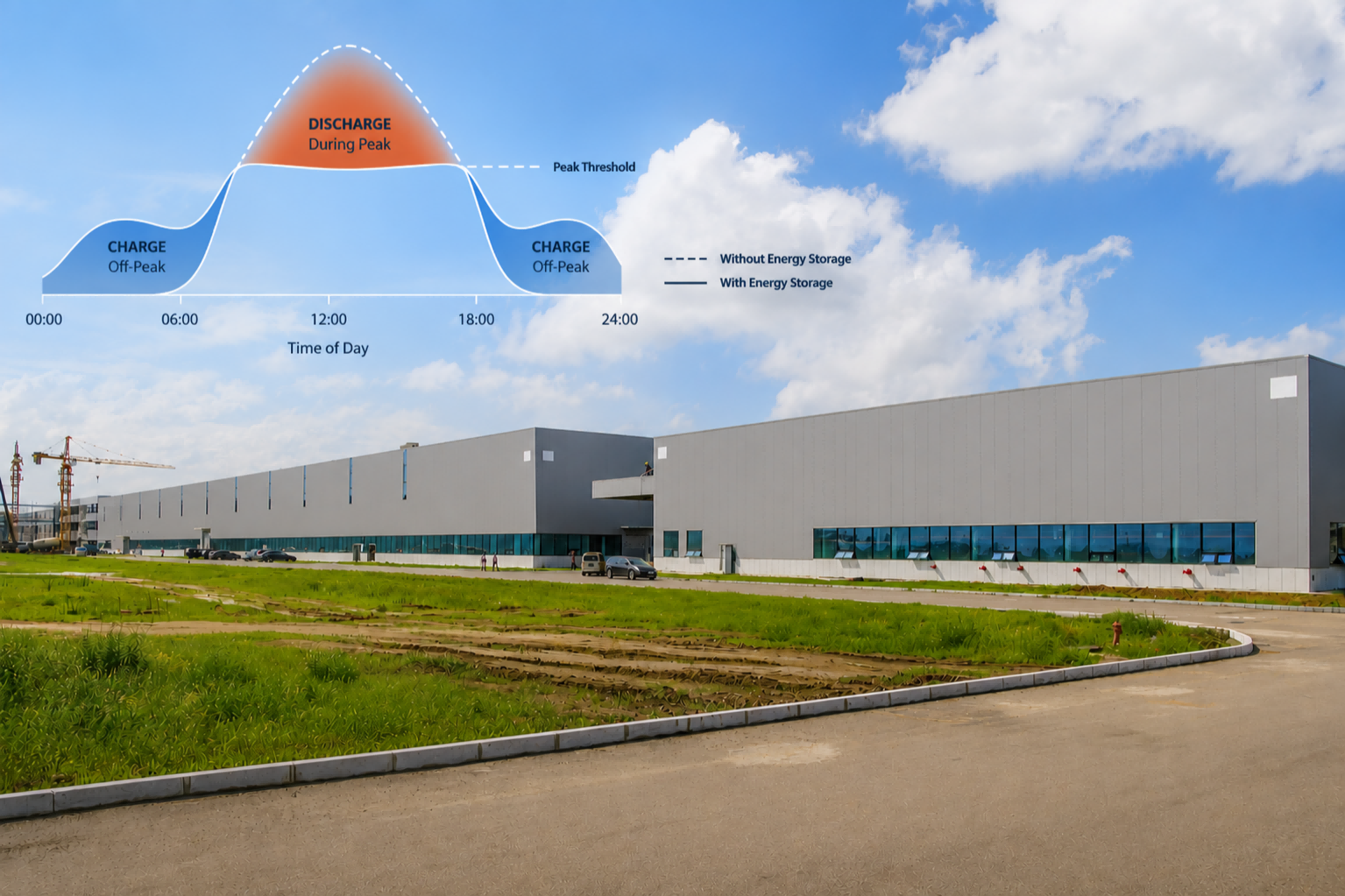

Supports peak shaving, demand response, and grid expansion for max revenue.

Smart O&M

Efficient management for remote monitoring, troubleshooting, and data analysis.

Products Parameter

E-MATE 105-221-A

Cell technology LFP-3.2 V / 314 Ah
Battery pack 20. 096 kWh, 64 V
Number of packs 11
Rated capacity 221.056 kWh
Rated voltage 704 V
Rated current 157 A
Voltage range 616 V ~ 792 V
Charge / discharge rate 0.5P
Ingress protection IP55
FSS Aerosol: module-level + stack-level, water firefighting, combustible gas detection and exhaust
Cycle life 8000 cycles (25±2°C, 0.5P / 0.5P, 70% SOH)
Compliance UN38.3 / UN3480
Dimension (W×D×H) 1380×1540×2330 mm(54×61×90 inch)
Weight 2750 kg (6062.71 Ibs)
