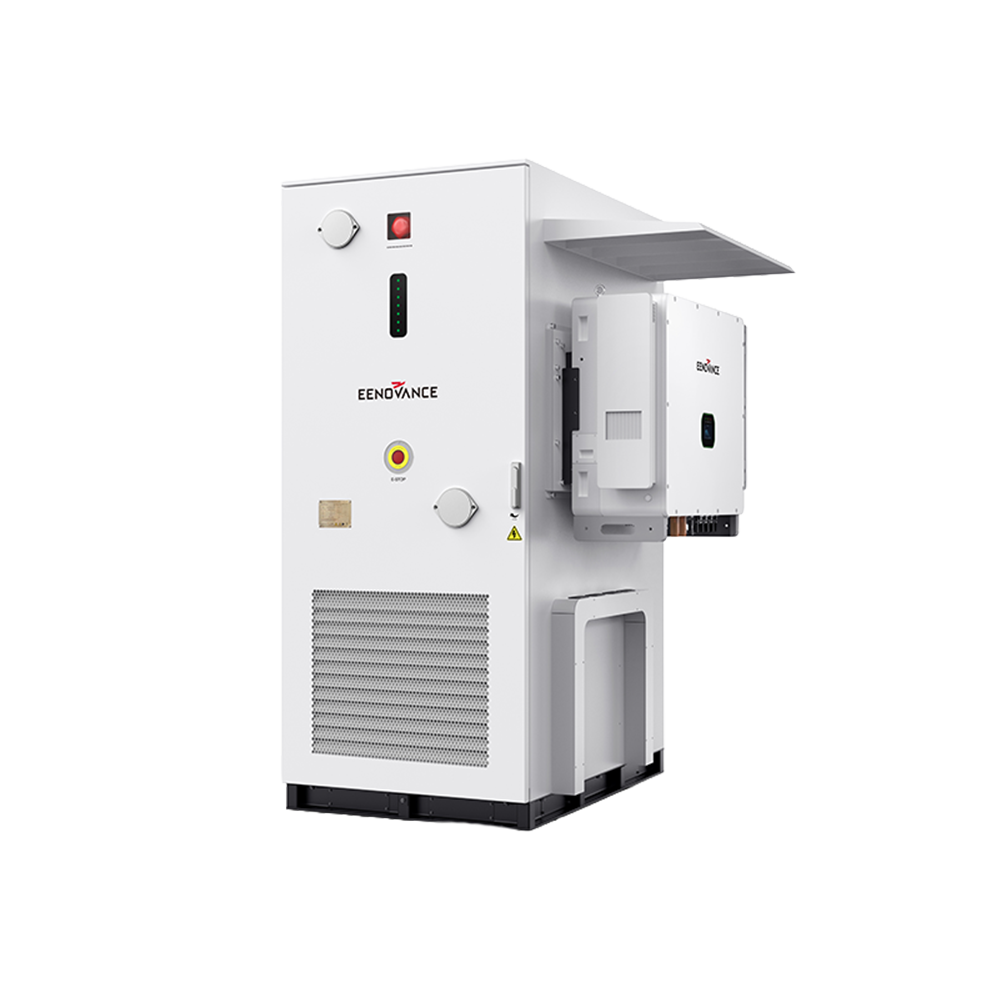

E-MATE 125-261-L MAX
261kWh / Liquid Cooling ESS
Certification:
UN38.3 & MSDS/IEC62619/63056/60730/IEC61000-2/-4
Features
A factory-integrated system with pre-commissioning and comprehensive factory testing, reducing onsite engineering, shortening deployment time and ensuring consistent system quality.
Intelligent liquid cooling maintains cell temperature differences within ≤2.5°C, improving thermal consistency, battery efficiency and long-term service life.
High-performance LFP batteries deliver over 8,000 cycles, maximizing lifetime energy throughput while reducing total cost of ownership.
Integrated battery management, early-warning detection, aerosol fire suppression and pressure relief work together to provide reliable protection throughout system operation.
Cloud-based monitoring, remote diagnostics and intelligent O&M deliver real-time system visibility and improve operational efficiency throughout the asset lifecycle.
Products Parameter
.png)
- Cell technology: LFP-3.2 V / 314 Ah
- Battery system rated capacity: 261kWh
- MPPT voltage range: 150 V - 950 Vac
- Maximum input current: 10*42 Aac
- Battery voltage range: 728 V ~ 936 V
- Maximum charging/discharging current: AC191.3A
- Number of battery ports: 5
- Size without hybrid inverter(width x height x depth): 1100 × 1424 × 2350 mm
- Weight(without hybrid inverter): 2300 kg
- Working environment temperature/humidity: -25 ~ +60°C / 0 ~ 95%
- Ingress protection IP65
- Compliance: UN38.3, MSDS, IEC62619/63056/60730, IEC61000-2/-4
