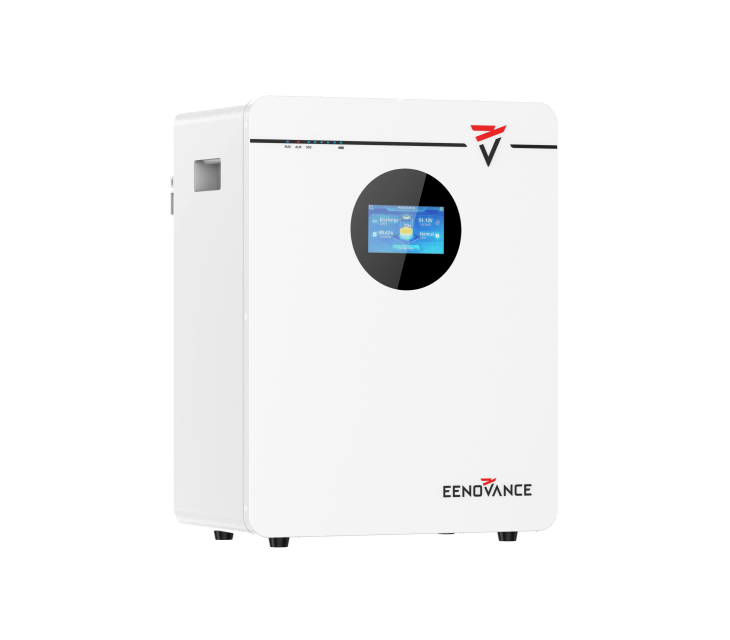

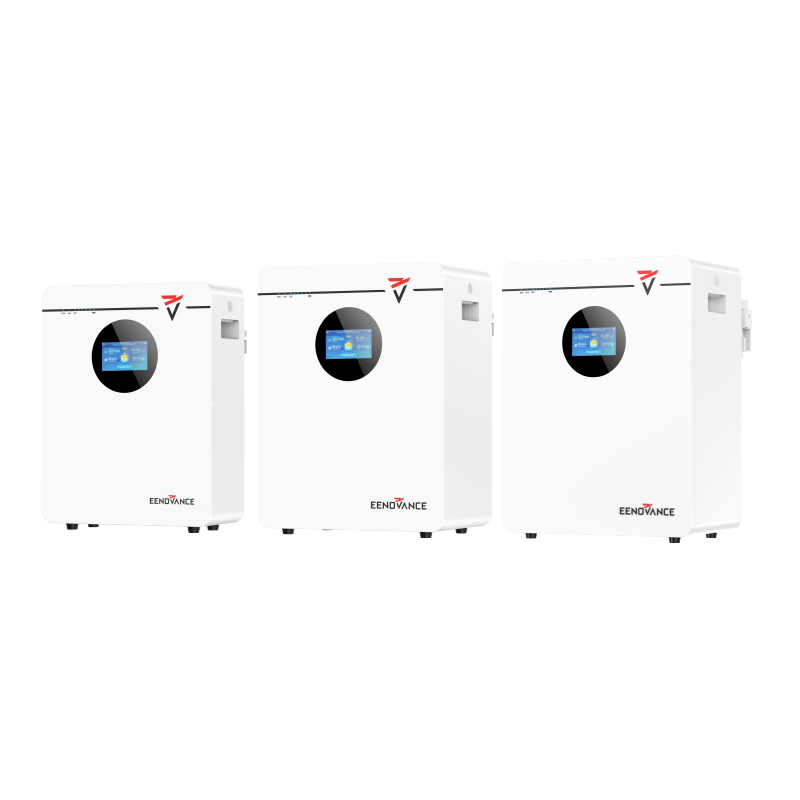

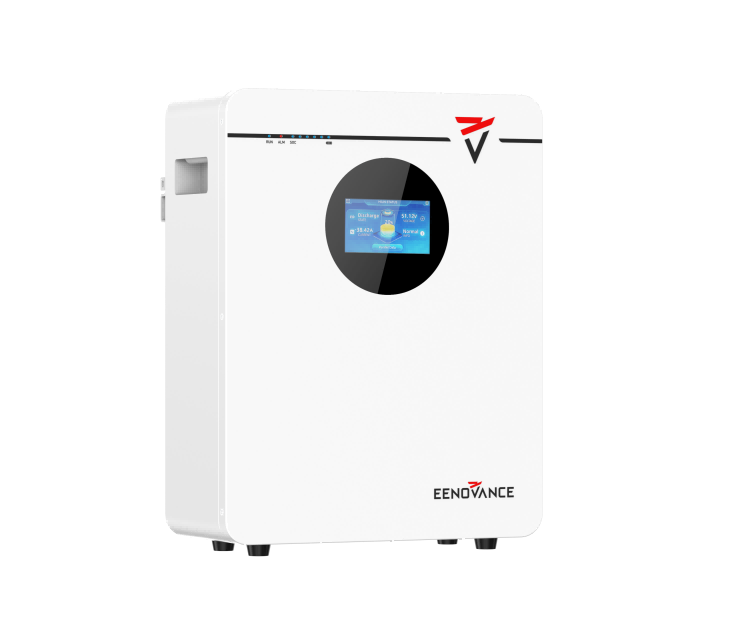

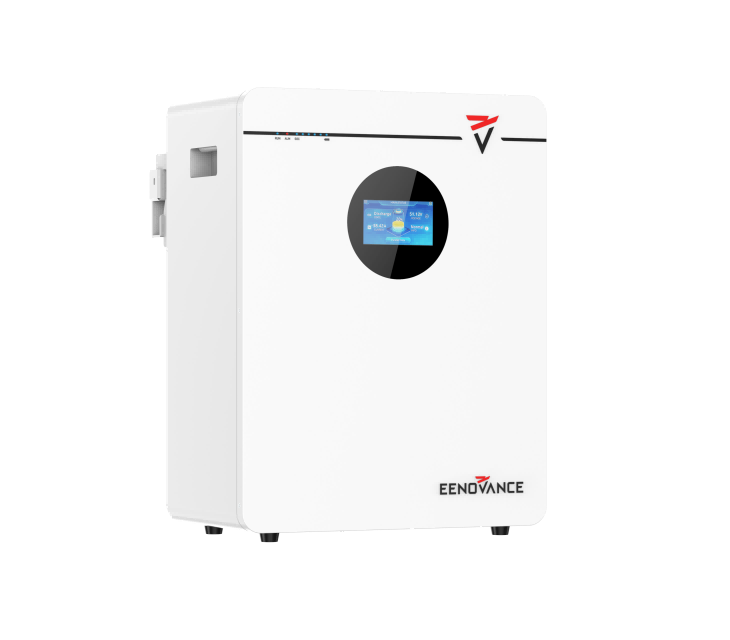

ECO Series
2.56 kWh/ 5.24 kWh/ 8.03 kWh
The ECO Series is a low-voltage residential energy storage solution designed for flexible indoor installation. Each unit delivers 2.56–8.03 kWh of usable energy and supports up to 15 batteries in parallel, making it easy to scale as household energy needs grow. With smart BMS protection and remote app control, ECO Series provides reliable, compact, and user-friendly home energy storage.
Compliance:
UN38.3 / IEC62619/ IEC61000 (More available upon request)
Features
Simplified setup saves time and effort.
Up to 15 units in parallel for growing energy demand.
Lightweight units for easy floor or wall installation.
.svg)
Remote app enables real-time system management.
.svg)
Automatic aerosol fire extinguishing for reliable operation.
Products Parameter
.png)
.png)
- Cell technology LFP ( LiFePO4)
- Battery usable energy 2.56 kWh/ 5.24 kWh/ 8.03 kWh
- Nominal capacity 100 Ah/ 205 Ah/ 314 Ah
- Operating voltage 22.4 ~ 28.08 V
- Max. charge and discharge current 100 A/ 200A/ 200A
- Dimension (W×D×H) 360×160×473 mm/ 410×245×538 mm/ 420×245×540 mm
- Ingress protection IP20
- Warranty period 5 years / 10 years（Optional）
- Compliance UN38.3 / IEC62619/ IEC61000 (More available upon request)
.jpg)
.png)
.jpg)
.jpg)
