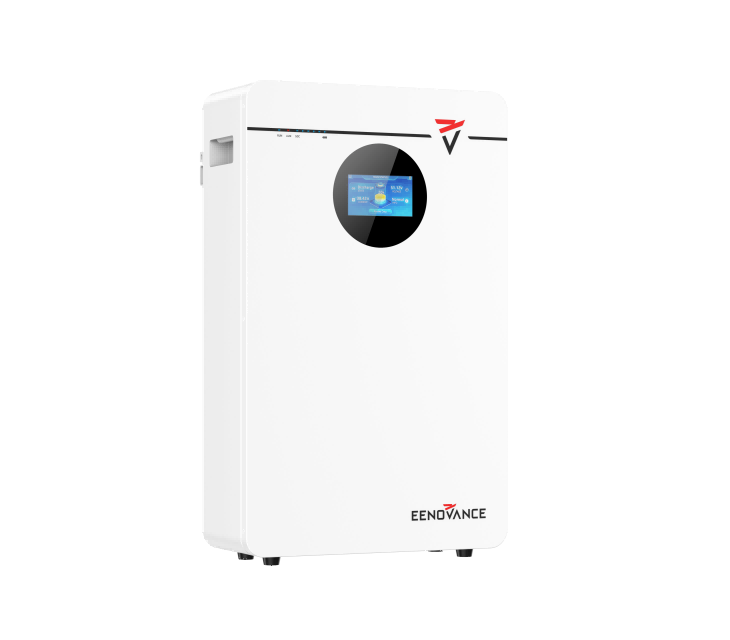

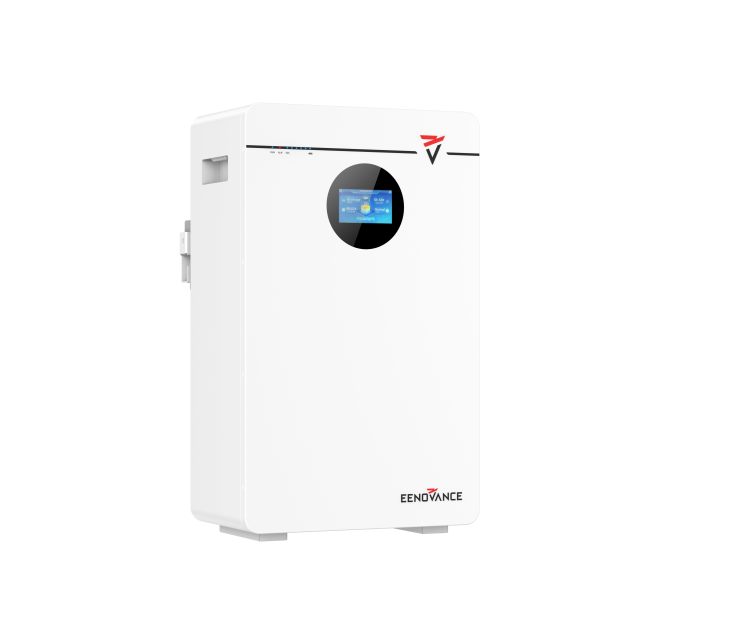

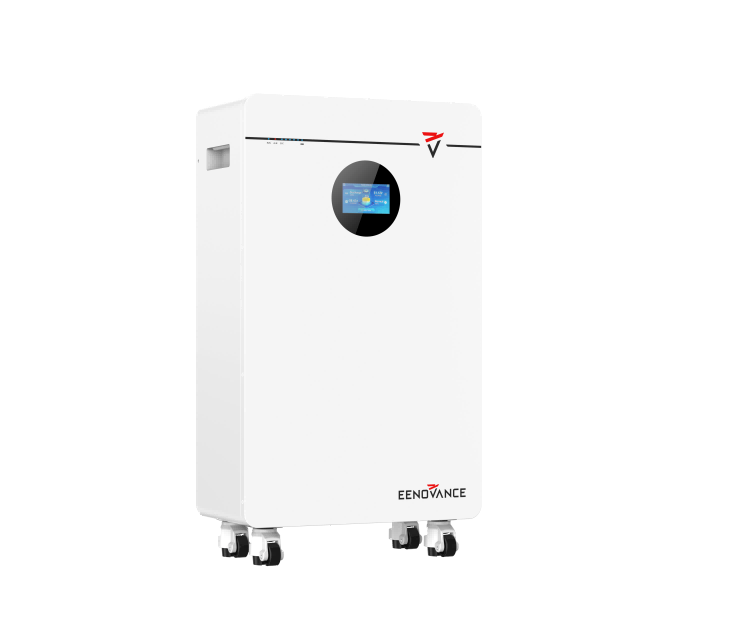

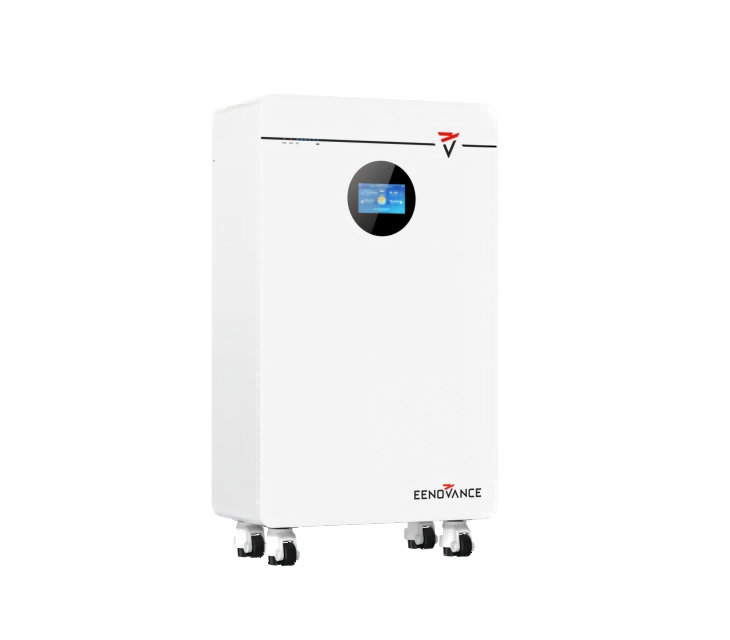

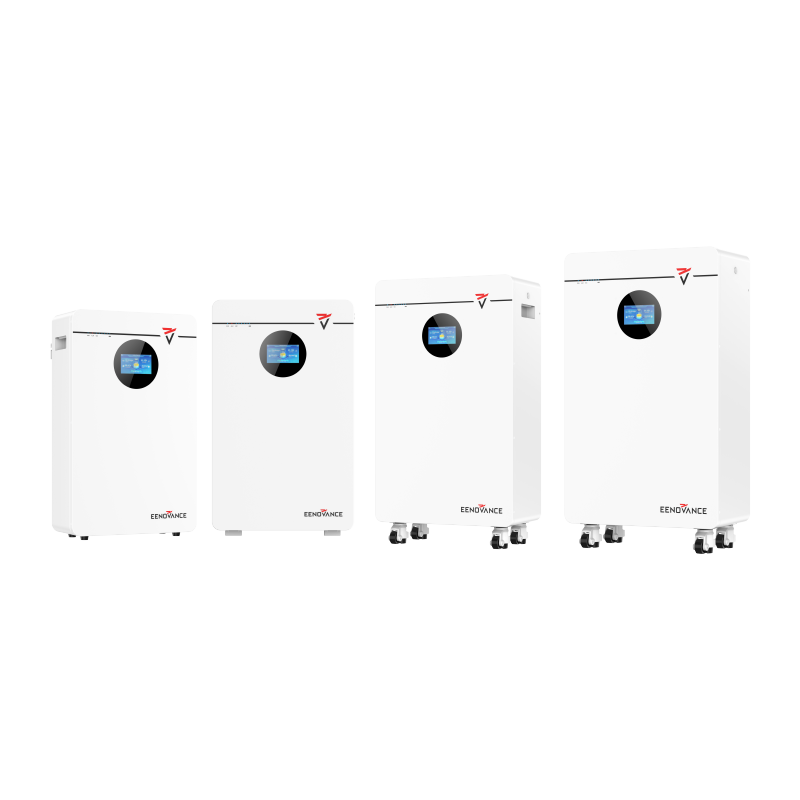

MANA-M Series

5.12 kWh / 10.24 kWh / 16.07 kWh / 20.07 kWh

MANA-M Series is a low-voltage residential energy storage solution built for easy expansion and smart energy management. With one-touch parallel scaling, the system can be flexibly expanded up to 15 batteries in parallel, allowing capacity to grow seamlessly as household energy needs increase. Combined with intelligent control and remote app management, MANA-M Series offers a simple, scalable, and user-friendly way to power modern homes.

Compliance:

UN38.3 / IEC62619/ IEC61000 etc.

Features

One-Touch Expansion

Scale up to 15 units with one simple operation.

Smart Remote Control

Monitor and manage energy anytime, anywhere.

Ultimate Safety Design

Smart BMS and automatic aerosol fire extinguishing.

Flexible Installation

Wall-mounted or floor-standing to fit any space.

Wide Inverter Compatibility

Works seamlessly with mainstream inverter brands.

Products Parameter

MANA-M Series

Cell technology LFP ( LiFePO4)
Battery usable energy 5.12 kWh/ 10.49 kWh/ 16.07 kWh/ 20.07 kWh
Nominal voltage 51.2 V
Operating voltage 44.8 ~ 56.16 V
Max. charge and discharge current 100A/ 200 A/ 200A / 200A
Weight 47 Kg/ 82 kg/ 122 kg/ 145 kg
Dimension (W×D×H) 390×160×643 mm/ 420×245×706 mm/ 485×245×785 mm/ 500 × 270 × 892 mm
Ingress protection IP20
Warranty period 5 years / 10 years（Optional）
Compliance UN38.3 / IEC62619/ IEC61000 (More available upon request)
