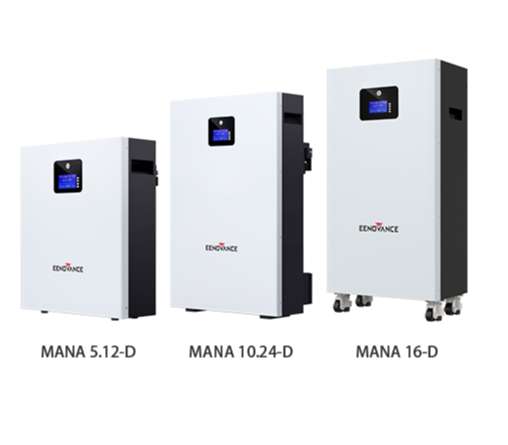

MANA-D Series

5.12 kWh / 10.24 kWh / 16.07 kWh

MANA-D Series is a low-voltage residential energy storage system built with advanced LiFePO₄ (LFP) technology, delivering safe, stable, and long-lasting power for everyday home use.

Designed for on-grid, hybrid, and off-grid applications, it helps optimize energy usage, ensure backup power, and reduce reliance on the grid. With flexible scalability of up to 15 units in parallel and fully automated, 100% tested manufacturing, MANA-D Series offers reliable performance that grows with household needs.

Compliance: UN38.3 / IEC62619/ IEC61000 etc.

Datasheet

Key Features

Reliable LFP Battery Technology

Equipped with top-grade Class A LiFePO₄ cells and strict capacity grading, ensuring enhanced safety, stability, and long cycle life.
Smart Monitoring & Control

Real-time data monitoring with precise voltage, temperature, and SOC detection, combined with firmware updates for optimized system performance.
User-Friendly Operation

One-button start/stop and parallel connection simplify installation and operation, reducing setup time and complexity.
Flexible Installation Options

Supports both floor-standing and wall-mounted installation, adapting easily to different residential environments.
Wide Compatibility

Compatible with major inverter brands via CAN, RS485, RS232, and Wi-Fi communication protocols.

Basic Parameter

- Cell technology:

  LFP ( LiFePO4)
- Battery usable energy:

  5.12 kWh / 10.24 kWh / 16.07 kWh
- Nominal voltage:

  51.2 V
- Operating voltage:

  44.8 ~ 56.16 V
- Max. charge and discharge current:

  100 A / 200 A / 200 A
- Weight:

  46 kg (101.4 Ibs) / 87.45 kg (192.7 Ibs) / 120 kg (264.55 Ibs)
- Dimension (W×D×H):

  450×150×533 mm (17.7×5.9×21.0 inch) / 550×160×836 mm (21.7×6.3×32.9 inch) / 450×245×790 mm (17.7×9.6×31.1 inch)
- Ingress protection:

  IP20
- Compliance:

  UN38.3 / IEC62619/ IEC61000 (More available upon request)
- Operating temperature:

  Charge: 0 to 50°C (32 to 122ºF) Discharge: -15 to 50°C (5 to 122ºF)
