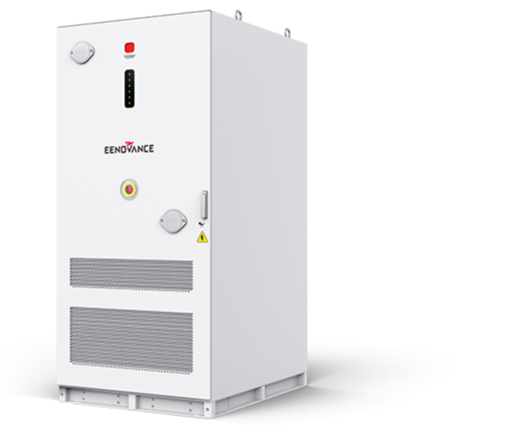

E-MATE 125-261-L

125kW/261kWh | Liquid Cooling ESS

E-MATE 125-261-L is a fully integrated AC-coupled energy storage system combining a 125 kW PCS with a 261.25 kWh modular liquid-cooled LFP battery. Designed for commercial and industrial on-grid applications, it enables efficient energy storage, peak shaving, and seamless PV integration.

Its liquid-cooled architecture ensures stable performance and extended service life, while high conversion efficiency and fast response deliver reliable power support. With multi-level safety protection and intelligent EMS control, the system provides secure, smart, and scalable energy management for modern C&I environments.

Certification: UL9540A (system level) / PGS 37-1 / UN38.3 / IEC62619 / IEC62477 / IEC61000 / EN18031-1 / EU / NRS097-2-1 / EN50549-1 / EN50549-2

Datasheet

Key Features

Safe & Reliable

IP67 battery protection combined with multi-level monitoring for gas, water, and ventilation ensures reliable and secure operation.
Flexible Expansion

Modular design with AC-side parallel expansion (up to 8.3MWh) allows flexible capacity growth as business needs evolve.
Smart O&M

Integrated intelligent EMS supports remote monitoring and fault diagnosis, reducing maintenance costs and improving operational visibility.
High Efficiency

Up to 98.5% PCS efficiency with <100 ms switching time delivers rapid response and maximized energy conversion.
Stable Performance

Liquid-cooled LFP architecture ensures consistent output, better thermal control, and longer system lifespan.

Basic Parameter

- Cell technology:

  LFP-3.2 V / 314 Ah
- Battery system rated capacity

  261.25 kWh
- Battery system voltage range:

  728 V ~ 936 V
- Battery system charge / discharge rate:

  0.5 P
- Cycle life:

  8000 cylces (25±2°C,0.5P/0.5P, 70% SOH)
- AC side rated output power:

  125 kW
- AC side rated voltage:

  400V±15%
- AC side rated output current:

  180 A
- Ingress protection:

  IP55
- PCS maximum efficiency:

  98.5%
- AC side charge/discharge switching time:

  < 100ms
- Dimension (W×D×H)

  1100×1424×2350 mm (43.31×56.06×92.52 inch)
- Weight:

  2700 kg
- Compliance:

  UL9540A (system level) / PGS 37-1 / UN38.3 / IEC62619 / IEC62477 / IEC61000 / EN18031-1 / EU / NRS097-2-1 / EN50549-1 / EN50549-2

Where You Need Them

Peak Shaving
Emergency Power Backup
Dynamic Capacity Expansion
PV+ESS+EV Charging
Power Quality Control
Micro-grid

Intelligent Control & Monitoring

Multiple operating modes to optimize energy utilization based on real-time conditions. Remote real-time monitoring capabilities via WiFi/Bluetooth for convenient oversight and control.
