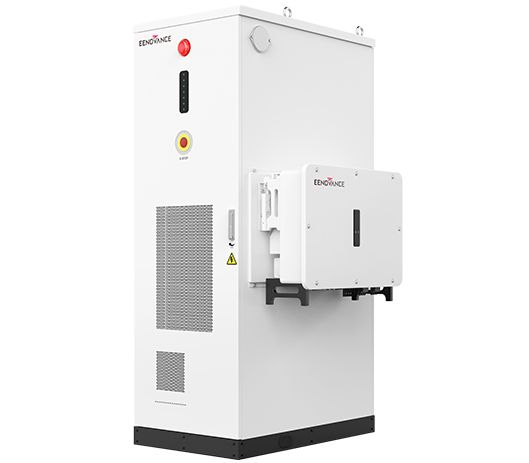

E-MATE 128-A

128 kWh | Air Cooling ESS

E-MATE 128-A is a fully integrated energy storage cabinet designed for commercial and industrial applications. Combining a 128 kWh battery system with a 30–50 kW hybrid inverter, it enables seamless coordination of PV, grid, storage, and diesel power.

With factory pre-integration and plug-and-play deployment, it significantly reduces installation time and cost. Built with IP55 protection and a wide operating range of -20°C to +50°C, the system performs reliably in harsh outdoor environments.

Its modular high-capacity design, long cycle life of up to 8,000 cycles, and intelligent remote O&M capabilities make it a practical, cost-effective solution for energy cost reduction, backup power, and efficient energy management.

Certification：UN38.3 / UN3480 / IEC62619 / IEC6100-6-2 / IEC62477-1 / CQC etc.

Datasheet

Key Features

Plug-and-Play, Faster Deployment

Factory pre-integrated and pre-commissioned, no complex on-site installation required. Deploy faster, reduce labor costs, and start generating value immediately.
Advanced Safety, Inside and Out

From LFP cell-level intrinsic safety to multi-layer protection (smoke detection, aerosol fire suppression, water fire interface), the system builds a complete safety loop with real-time monitoring and alarm linkage.
Built for Harsh Environments

IP55 protection and stable operation from -20°C to +50°C ensure reliable performance in rain, dust, heat, and cold—ideal for outdoor and remote applications.
High-Capacity, Flexible Design

128 kWh capacity with modular battery packs based on 314 Ah cells, supporting flexible configuration and future expansion while simplifying system structure.
Long-Term Reliability & ROI

Up to 8,000 cycles with intelligent energy management, helping maximize system lifespan and deliver stronger long-term returns.
Efficient Thermal Management

Smart forced air-cooling ensures uniform heat dissipation across all battery modules, with precise temperature control to improve consistency, safety, and lifespan.
Smart Remote O&M

Real-time monitoring, remote diagnostics, and intelligent dispatch reduce maintenance costs and improve operational efficiency.
Low Noise, High Performance

Operating noise ≤75dB, making it suitable for urban and noise-sensitive environments without compromising performance.

Basic Parameter

- Cell technology:

  LFP-3.2 V / 314 Ah
- Battery system rated capacity:

  80.3~128.6 kWh
- Battery system voltage range:

  256~409.6V
- Battery system charge / discharge rate:

  0.5P
- Cycle life:

  8000 cycles (25±2°C, 0.5P / 0.5P, 70% SOH)
- Rated current：

  157 A
- IP Rating：

  IP55
- Dimension (W×D×H)：

  780x1257 x2373 mm
- Weight：

  1700 kg
- Operating temperature:

  -20°C~+50°C (-22°F~+ 131°F)
- Relative humidity:

  0 ~ 95% (No condensation)
- Maximum working altitude:

  ≤4000 m(> 2000m Derating)
- Noise:

  ≤75dB
- Communication:

  CAN / RS485 / TCP
- Compliance:

  UN38.3 / UN3480 / IEC62619 / IEC6100-6-2 / IEC62477-1 / CQC (More available upon request)

Where You Need Them

Peak Shaving
Emergency Power Backup
Dynamic Capacity Expansion
PV+ESS+EV Charging
Power Quality Control

Intelligent Control & Monitoring

Multiple operating modes to optimize energy utilization based on real-time conditions. Remote real-time monitoring capabilities via WiFi/Bluetooth for convenient oversight and control.
