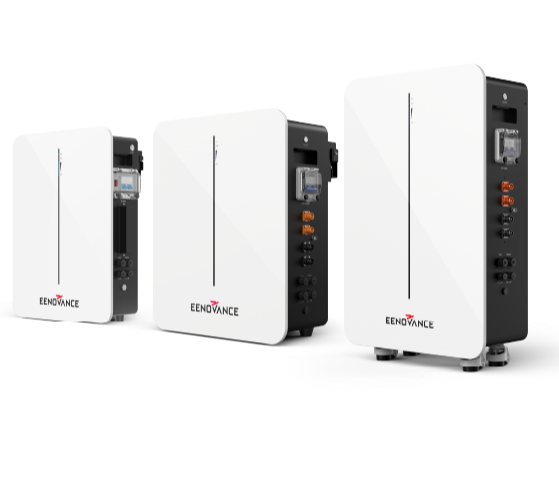

MANA-P Series

5.12 kWh / 10.49 kWh / 16.07 kWh

MANA-P Series model is a low-voltage residential energy storage system suitable for both indoor and outdoor installation. With an IP65-rated enclosure, it delivers reliable operation in dust- and water-exposed environments. Each unit offers 5.12–16.07 kWh of usable energy and supports up to 15 batteries in parallel, enabling system expansion to 241.05 kWh.

Compliance:

UN38.3 / IEC62619 / IEC61000 / IEC62040-1 / FCC / UL1973 / UL9540A etc.

Datasheet

Key Features

IP65 Protection

Stable operation in dust, rain, and outdoor conditions.
Scalable Capacity

Up to 241.05 kWh as household needs grow.
Easy Expansion

Expand to 15 units without complex setup.
Smart Control

Remote monitoring and updates via app.
Certified Safety

UL and IEC certified for daily home use.

Basic Parameter

- Cell technology

  LFP ( LiFePO4)
- Battery usable energy

  5.12 kWh / 10.49 kWh / 16.07 kWh
- Nominal capacity

  100 Ah/ 205 Ah/ 314 Ah
- Nominal voltage

  51.2 V
- Operating voltage

  44.8 ~ 56.16 V
- Max. charge and discharge current

  100A/ 200 A/ 200A
- Dimension (W×D×H)

  470×160×635 mm/ 530×245×660mm/ 530×245×847mm
- Weight

  48.8 kg/ 88 kg/ 120 kg
- Ingress protection

  IP65
- Warranty period

  5 years / 10 years（Optional）
- Compliance

  UN38.3 / IEC62619 / IEC61000 / IEC62040-1 / FCC / UL1973 / UL9540A (More available upon request)
