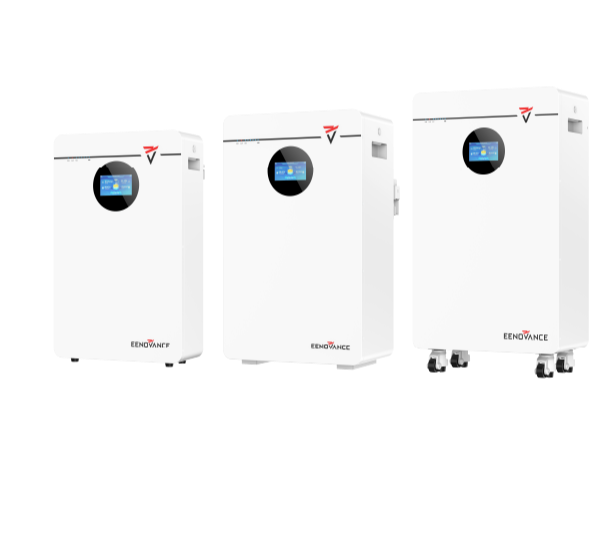

MANA-M Series

5.12 kWh / 10.24 kWh / 16.07 kWh

MANA-M Series is a low-voltage residential energy storage solution built for easy expansion and smart energy management.

With one-touch parallel scaling, the system can be flexibly expanded up to 15 batteries in parallel, allowing capacity to grow seamlessly as household energy needs increase.

Combined with intelligent control and remote app management, MANA-M Series offers a simple, scalable, and user-friendly way to power modern homes.

Compliance:

UN38.3 / IEC62619/ IEC61000 etc.

Datasheet

Key Features

One-Touch Expansion

Scale up to 15 units with one simple operation.
Smart Remote Control

Monitor and manage energy anytime, anywhere.
Ultimate Safety Design

Smart BMS and automatic aerosol fire extinguishing.
Flexible Installation

Wall-mounted or floor-standing to fit any space.
Wide Inverter Compatibility

Works seamlessly with mainstream inverter brands.

Basic Parameter

- Cell technology

  LFP ( LiFePO4)
- Battery usable energy

  5.12 kWh/ 10.24 kWh/ 16.07 kWh
- Nominal voltage

  51.2 V
- Operating voltage

  44.8 ~ 56.16 V
- Max. charge and discharge current

  100A/ 200 A/ 200A
- Weight

  47 Kg/ 82 kg/ 122 kg
- Dimension (W×D×H)

  390×160×643 mm/ 420×245×706 mm/ 485×245×785 mm
- Ingress protection

  IP20
- Warranty period

  5 years / 10 years（Optional）
- Compliance

  UN38.3 / IEC62619/ IEC61000 (More available upon request)
