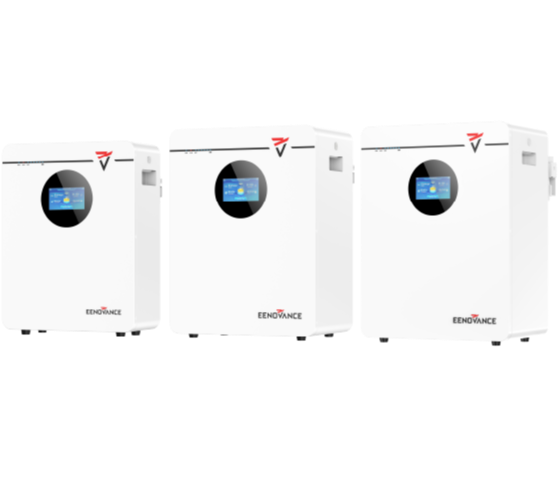

ECO-M Series

2.56 kWh/ 5.24 kWh/ 8.03 kWh

The ECO-M Series is a low-voltage residential energy storage solution designed for flexible indoor installation. Each unit delivers 2.56–8.03 kWh of usable energy and supports up to 15 batteries in parallel, making it easy to scale as household energy needs grow. With smart BMS protection and remote app control, ECO-M Series provides reliable, compact, and user-friendly home energy storage.

Compliance:

UN38.3 / IEC62619/ IEC61000 (More available upon request)

Datasheet

Key Features

One-Touch Expansion

Simplified setup saves time and effort.
Scalable Capacity

Up to 15 units in parallel for growing energy demand.
Compact Design

Lightweight units for easy floor or wall installation.
Smart Control

Remote app enables real-time system management.
Enhanced Safety

Automatic aerosol fire extinguishing for reliable operation.

Basic Parameter

- Cell technology

  LFP ( LiFePO4)
- Battery usable energy

  2.56 kWh/ 5.24 kWh/ 8.03 kWh
- Nominal capacity

  100 Ah/ 205 Ah/ 314 Ah
- Nominal voltage

  25.6 V
- Operating voltage

  22.4 ~ 28.08 V
- Max. charge and discharge current

  100 A/ 200A/ 200A
- Dimension (W×D×H)

  360×160×473 mm/ 410×245×538 mm/ 420×245×540 mm
- Weight

  25 Kg/ 47 kg/ 70 kg
- Ingress protection

  IP20
- Warranty period

  5 years / 10 years（Optional）
- Compliance

  UN38.3 / IEC62619/ IEC61000 (More available upon request)
