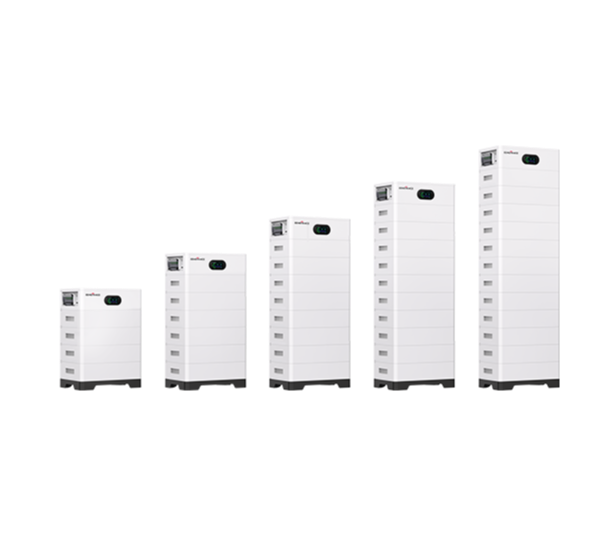

CHAKRA 5.1-HX-1P1

High-Voltage | 20.48 - 61.44 kWh

CHAKRA 5.1-HX-1P1 is a high-voltage residential battery system designed to maximize solar self-consumption, provide reliable backup power, and support long-term energy independence.

Built with advanced LFP technology,intelligent battery management system, and a modular architecture, the system delivers safe, efficient, and scalable energy storage for a wide range of residential applications.

Certification:

UN38.3 / IEC62619 / IEC62040-1 / IEC61000-6-2 / IEC1000-6-4 / IEC62477-1

Datasheet

Key Features

Engineered for Safety

Combining LFP chemistry, intelligent battery protection, and integrated fire suppression to safeguard every stored kilowatt-hour.
Effortless Deployment

A plug-and-play architecture with automatic module recognition simplifies installation and reduces commissioning time.
Scales with Your Needs

Expand from 20.48 kWh to 245.76 kWh with a flexible modular design built for evolving energy requirements.
Smarter Energy Control

Real-time monitoring, intelligent scheduling, and remote access help maximize energy efficiency and system visibility.
Ready for Every Season

IP65-rated protection and wide-temperature operation enable reliable performance indoors and outdoors.
Designed for Seamless Integration

Compatible with leading inverter brands and residential solar systems for greater installation flexibility.

Basic Parameter

- Cell technology

  LFP ( LiFePO4)
- Battery module

  5.12 kWh, 51.2 V, 44 kg (97 Ibs)
- Battery usable energy

  20.48 kWh~61.44 kWh
- Nominal voltage

  204.8 V~614.4 V
- Max. charge and discharge current

  50 A
- Display

  LCD Display (battery operating status, SOC, alerts, etc.)
- Ingress protection

  IP65
- Cycle life

  8000 Cycles or ten (10) years @ 80% DOD / 25°C / 0.5C, 70% EOL
- Scalability

  Max 12 modules per stack, 4 stacks in parallel
- Compliance

  UN38.3 / IEC62619 / IEC62040-1 / IEC61000-6-2 / IEC1000-6-4 / IEC62477-1 (More available upon request)
- Operating temperature

  Charge : 0 to 50°C (32 to 122°F) Discharge: -20 to 50°C (-4 to 122°F)
- Installation

  Floor stand
- Communication

  CAN / RS485 / RS232 / Wi-Fi
