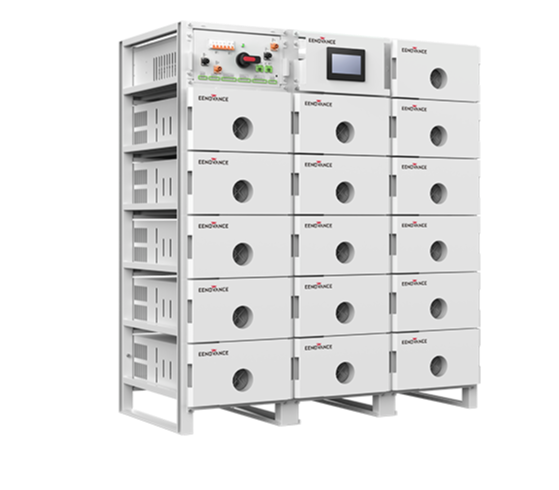

E-MATE 112R–257R

High-Voltage | 112.5 - 257.2 kWh

Designed for commercial and industrial applications, the E-MATE 112R–257R is a modular high-voltage battery system offering flexible energy storage from 112.5 kWh to 257.2 kWh. Built on proven LFP technology, it combines long service life, reliable performance,in a compact rack design. From commercial buildings to industrial facilities, the system helps maximize energy efficiency while supporting efficient project deployment and future expansion.

Certification:

UN38.3/IEC62619/63056/60730/IEC6100-6-2/IEC62477-1

Datasheet

Key Features

Flexible by Design

Available from 112.5 kWh to 257.2 kWh with support for up to nine parallel stacks, the system adapts easily to various project requirements.
Proven LFP Safety

Premium LiFePO₄ battery technology delivers exceptional thermal stability, enhanced operational safety and long-lasting performance for demanding C&I applications.
Rapid Deployment

The modular rack-based design simplifies transportation, installation and commissioning, helping reduce onsite work and accelerate project delivery.
Up to 8,000 Cycles

Long cycle life helps maximize system availability while reducing maintenance and replacement costs over time.
Intelligent Battery Management

The integrated BMS continuously monitors battery status, balances cell performance and provides comprehensive protection for reliable system operation.
Broad PCS Compatibility

Standard communication protocols enable seamless integration with a wide range of mainstream PCS brands, making system design and deployment more flexible.

Basic Parameter

- Cell technology:

  LFP ( LiFePO4)
- Battery module:

  16.0768 kWh, 51.2 V, 115kg (253.53 Ibs)
- Number of modules:

  7~16
- Battery usable energy:

  112.5 kWh ~ 257.2 kWh
- Nominal voltage:

  358.4~819.2V
- Max. charge and discharge current:

  157 A
- Recommend Depth of Discharge：

  90%
- Display：

  LCD Display (battery operating status, SOC, alerts, etc.)
- Communication：

  CAN / RS485/Bluetooth+wi-fi
- Operating temperature：

  Charge: 0°C to 55°C (32ºF to 131ºF) Discharge:-20°C to 55°C (-4°F to 131°F)
- Ingress protection：

  IP20
- Scalability：

  Max. 16 modules per stack, 9 stacks in parallel
- Cycle life：

  8000 cycles (25±2°C, 0.5P / 0.5P, 70% SOH)
- Compliance：

  UN38.3/IEC62619/63056/60730/IEC6100-6-2/IEC62477-1
