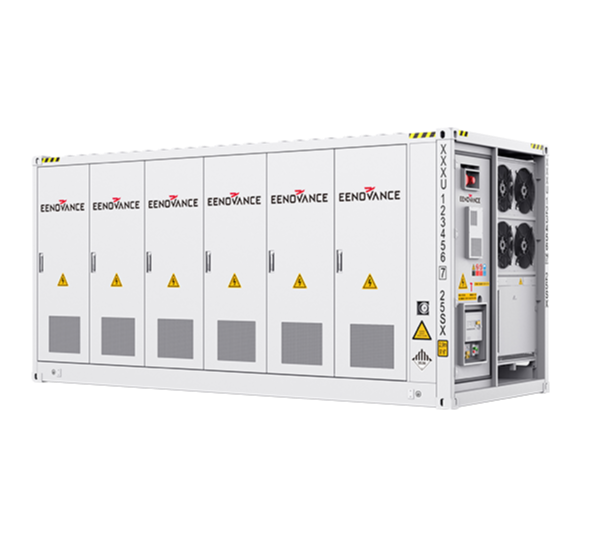

G-Power 1500-3134-L

3.134 MWh | Battery System

The G-Power 1500-3134-L is a fully integrated 3.134 MWh liquid-cooled energy storage system engineered for commercial and industrial energy storage, microgrids, and renewable energy applications.

Combining advanced liquid-cooling technology, intelligent cluster-level management, comprehensive safety architecture, and cloud-based energy management, the system delivers exceptional energy density, operational reliability, and long-term profitability. Designed for rapid deployment and stable operation in demanding environments, G-Power 1500-3134-L helps maximize renewable energy utilization, reduce operating costs, and strengthen energy resilience.

Compliance:

UN3536,IEC62619,IEC63056,IEC62477-1,IEC61000-6-2/-4,IEC60730,UN38.3,Rohs

Datasheet

Key Features

Fully Pre-Integrated for Faster Deployment

Delivered as a factory-integrated AC+DC solution, the system significantly reduces on-site installation and commissioning work, accelerating project delivery and shortening time-to-revenue.
Built for Extreme Environments

Designed to operate reliably from -20°C to 50°C, with no power derating under high-temperature conditions, ensuring stable performance across deserts, industrial zones, coastal regions, and other challenging environments.
Intelligent Cluster-Level Control

Independent cluster management enables flexible capacity utilization, precise energy balancing, and fault isolation, maximizing system availability while minimizing operational disruptions.
Multi-Layer Active Safety Protection

From cell-level monitoring to container-level fire protection, the system integrates gas detection, thermal monitoring, aerosol suppression, explosion venting, and intelligent BMS control to deliver comprehensive safety throughout the entire lifecycle.
Optimized Lifetime Economics

High-efficiency liquid cooling, long-life LFP batteries, intelligent operation strategies, and reduced maintenance requirements contribute to lower total cost of ownership and stronger long-term project returns.
Smart Cloud-Based O&M

Real-time monitoring, remote diagnostics, OTA upgrades, automated reporting, and intelligent alarm management enable more efficient operation and simplified asset management.

Basic Parameter

- Cell technology:

  LFP-3.2 V / 314 Ah
- Rated capacity:

  3.134 MWh
- Rated voltage:

  832 Vdc
- Voltage range:

  728 Vdc ~ 936 Vdc
- Charge / discharge rate:

  0.5P
- Cycle life:

  8000 cycles (25±2°C, 0.5P/0.5P, 70% SOH)
- Ingress protection:

  IP54
- Dimension (W×D×H):

  6058×2438×2896 mm (238.5×96×114 inch)
- Corrosion Resistance:

  C4M
- Weight:

  33 T (99208.0 Ibs)
- FSS:

  Aerosol: module-level + containerized-level, water firefighting, combustible gas detection and exhaust, explosion venting design
- Compliance:

  UN3536,IEC62619,IEC63056,IEC62477-1,IEC61000-6-2/-4,IEC60730,UN38.3,Rohs
