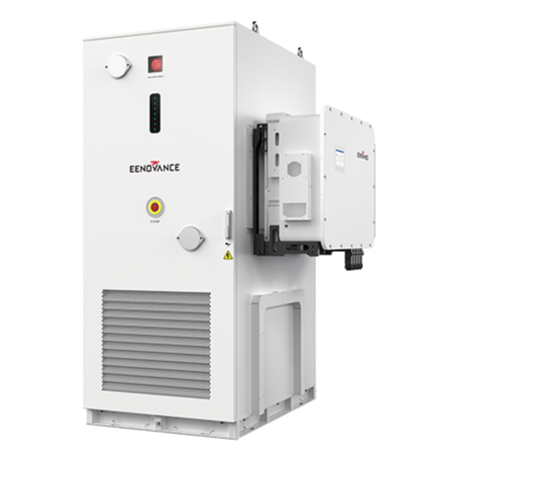

E-MATE 261-L

261kWh / Liquid Cooling ESS

The E-MATE 261-L is a fully integrated outdoor energy storage system for commercial and industrial applications. Combining high-performance LFP batteries, intelligent liquid cooling, multi-layer safety protection and cloud-based energy management within a factory-integrated architecture, it enables simplified deployment, reliable operation and long-term lifecycle value.

Certification:

UN38.3 & MSDS/IEC62619/63056/60730/IEC61000-2/-4

Datasheet

Key Features

Factory-Integrated Architecture

A factory-integrated system with pre-commissioning and comprehensive factory testing, reducing onsite engineering, shortening deployment time and ensuring consistent system quality.
Precision Thermal Management

Intelligent liquid cooling maintains cell temperature differences within ≤2.5°C, improving thermal consistency, battery efficiency and long-term service life.
8,000+ Cycle Performance

High-performance LFP batteries deliver over 8,000 cycles, maximizing lifetime energy throughput while reducing total cost of ownership.
Comprehensive Safety Architecture

Integrated battery management, early-warning detection, aerosol fire suppression and pressure relief work together to provide reliable protection throughout system operation.
Intelligent Energy Management

Cloud-based monitoring, remote diagnostics and intelligent O&M deliver real-time system visibility and improve operational efficiency throughout the asset lifecycle.

Basic Parameter

- Cell technology:

  LiFePO4
- Battery system rated capacity:

  261kWh
- MPPT voltage range:

  150 V - 950 Vac
- Maximum input current:

  10*42 Aac
- Battery voltage range:

  300 - 950 V
- Maximum charging/discharging current:

  200 A / 100 A + 100 A
- Number of battery ports:

  2
- Size (width x height x depth):

  1174 x 814 x 400 mm
- Weight:

  170 kg
- Working environment temperature/humidity:

  -25 ~ +60°C / 0 ~ 100 %
- Ingress protection:

  IP66
- Compliance:

  UN38.3 & MSDS/IEC62619/63056/60730/IEC61000-2/-4
